Ball valves

• stem extension by 100 mm
• Pneumatic rotary actuator
• Dead man's lever, spring loaded
• Assembly interface according to ISO 5211
• Also available with metal seats (stem extension included)

• RTFE- Seat Standard: DIN EN ISO 15848-1 (TA-Luft)
• Available on request:
  • Fire Safe API 607 / API 608
  • NACE MR0175

Ball Valves HSO Series (Catalogue H-HSOBV-D) [1240 KB]

Pressure dimensioning with lateral 3-way openings as inlet: 150 psi (10 bar).

• 2-way version in straight form or 3-way version
• Various connections (Hy-Lok compression fitting, NPT male and female thread, etc.)
• Various bores and flow coefficients (0.06 ≤ cv ≤ 6.42)
• Different coloured nylon handles to indicate the flow direction
• Pneumatic drive on demand

• Nitrogen at 69 bar (1000 psi) with a max. leak rate of 0.1 Ncm³/min
• TA-Luft: VDI 2440, ISO 15848-1
• SIL 2 to SIL 4: IEC 61508 / IEC 61511
• Other tests on demand

High-pressure ball valves with forged housing 102 Series H-102BV-D, 2013-11 [550 KB]

• 2-way version in straight form or elbow form, 3-way version with inlet at the bottom or on the side
• Various connections (Hy-Lok compression fitting, NPT/ISO male and female thread, etc.)
• Various bores and flow coefficients (1.2 ≤ cv ≤ 30.0)
• Integrated shut-off device on demand
• Pneumatic drive on demand

• Nitrogen at 69 bar (1000 psi) with a max. leak rate of 0.1 Ncm³/min
• Hydrostatic test of the housing with 1.5 times the permissible working pressure
• TA-Luft: VDI 2440, ISO 15848-1
• SIL 2 to SIL 4: IEC 61508 / IEC 61511
• Other tests on demand

High-pressure ball valves 105 Series
H-105BV-D [1.3 MB]

• Various connections (Hy-Lok compression fitting, NPT/ISO female thread)
• Various bores and flow coefficients (0.84 ≤ cv ≤ 25.0 and higher)
• Various handles

Standard Handle
The ball valve can be easily operated via the standard stainless steel handle. Material handle: stainless steel with PVC coating (red)

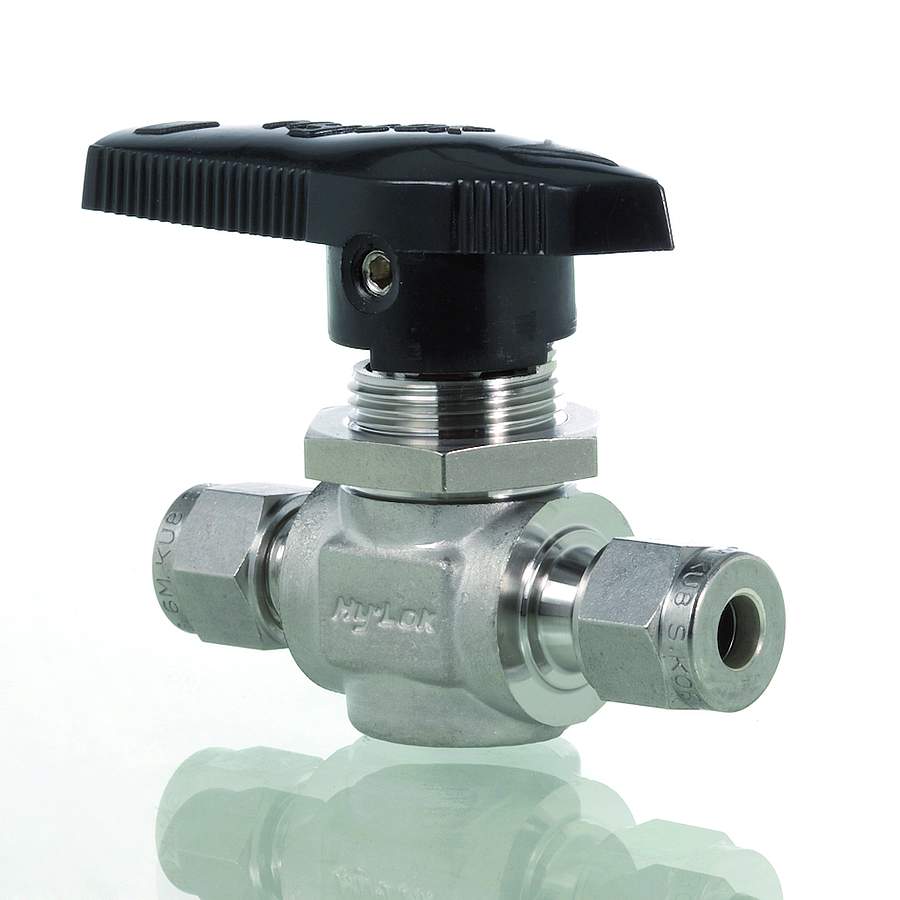

Nylon Handle
The nylon handle is suitable for installing and operating the ball valve in confined areas. Handle material: Dielectric nylon (black)

Key Lock Handle
The master key must be inserted into the handle to operate the ball valve. This can prevent malfunctions and accidents caused by incorrect operation by an untrained or unauthorized person during installation or inspections of the pipeline. Material handle: painted aluminum (blue)

Self Lock Handle
110 Series ball valves can be padlocked in the open position with this handle. The padlock is not included in the scope of delivery. Material handle: stainless steel with PVC coating (red)

Butterfly Handle
The butterfly handle from zinc is suitable for installation and operation of the ball valve in confined areas. Material handle: Nickel plated zinc

Push and Turn Handle
This handle locks the ball or stem in the normally open or closed position and can only be operated when pushed down in the normal position. Handle material: Dielectric Nylon (black)

• Nitrogen at 69 bar (1000 psi) with a max. leak rate of 0.1 Ncm³/min
• Hydrostatic test of the housing with 1.5 times the permissible working pressure
• Other tests on request

Low-pressure ball cocks 1/4” to 2” 110 Series
H-110BV-E [1.9 MB]

• 2-way version in straight form or elbow form or as 3-way version
• Optional venting: at the outlet (DV) or inlet (UV)
• Various connections (Hy-Lok compression fitting, NPT/ISO female thread)
• Various bores and flow coefficients (0.1 ≤ cv ≤ 12.0 and higher)
• Different coloured handles with indication of the flow direction
• Packing adjustment via packing screw

• Nitrogen at 69 bar (1000 psi) with a max. leak rate of 0.1 Ncm³/min
• TA-Luft: VDI 2440, ISO 15848-1
• Other tests on demand

Sour gas application

• Sour gas specification to NACE MR01-75 / ISO 15156 on demand

• Cylindrical ISO female thread in various sizes
• Various bores (DN6 or DN13)

• 100% works test
• Nitrogen at 69 bar (1000 psi) with a max. leak rate of 0.1 Ncm³/min
• Hydrostatic test of the housing with 1.5 times the permissible working pressure
• Other tests on demand

Ball valves 115 Series [29.4 MB]

• 2-way version in straight form or 3-way version
• Optional venting: at the outlet (DV) or inlet (UV)
• Optional dead space shells of reinforced PTFE
• Integrated detent and locking device on the handle
• Various connections (Hy-Lok compression fitting, NPT/ISO male and female thread, ZCR and ZCO screw fittings, etc.)
• Extensive range of optional accessories and maintenance kits
• Pneumatic drive on demand

• Nitrogen at 69 bar (1000 psi) with a max. leak rate of 0.1 Ncm³/min
• Hydrostatic test of the housing with 1.5 times the permissible working pressure
• TA-Luft: VDI 2440, ISO 15848-1
• SIL 2 to SIL 4: IEC 61508 / IEC 61511
• Other tests on demand

Sour gas application

• Sour gas specification to NACE MR01-75 / ISO 15156 on demand

Swing-out ball valves SO Series
H-SOBV-E [6.0 MB]

T SERIES

TH SERIES

• 2-way or 3-way version and shut-off or changeover valve
• Venting (T Series): at the outlet (DV) or inlet (UV)
• Various connections (Hy-Lok compression fitting, NPT female thread)
• Various bores and flow coefficients (0.75 ≤ cv ≤ 1.6)
• Extensive range of optional maintenance kits
• Pneumatic drive on demand

• Nitrogen at 69 bar (1000 psi) with a max. leak rate of 0.1 Ncm³/min
• Hydrostatic test of the housing with 1.5 times the permissible working pressure
• TA-Luft: VDI 2440, ISO 15848-1
• Other tests on demand

Trunnion ball valves T Series T
H-100TBV-E [3.5 MB]
